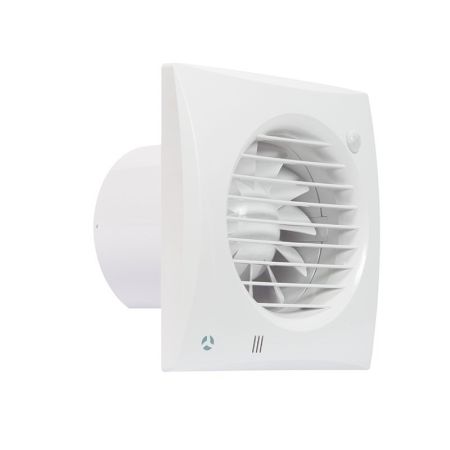

Airflow QuietAir 120mm Timer Fan 9041498 | QT120T

Airflow QuietAir 120mm Timer Fan 9041498 | QT120T

The Airflow QuietAir 120mm Timer Fan combines contemporary design with ultra low noise levels and outstanding energy efficiency. The Quietest Fan Avaiilable Complying with Building Regulations "Installed Performance" Requirements when Ducted.

The Airflow QuietAir QT120T Timer Fan is Suitable for toilets, en-suites and bathrooms; and at just 25dB(A) you will hardly hear the fan running, even at night

Applications

• Suitable for toilets, en-suites, bathrooms, small rooms, utility rooms and kitchen (adjacent to hob)

Features

• Awarded QuietMark 2014 for kitchen category by Noise Abatement Society
• Quiet from only 32 dB(A)
• Power consumption only 10 watts
• Two speed options, 150 m3/hr and 170 m3/hr
• Basic switching (two speed options)
• High efficiency impeller delivers up to 120m3/hr through long lengths of rigid ducting, including 90 degree bends
• Use in wet zone 1 when protected by an RCD and installed in accordance with latest IEE wiring regulations
• Integral flow straightener and back draught flap
• Clip-on cover for ease of cleaning
• Complies with latest 2010 Building Regulations Approved Document F
• Airflow 150/170 m3/hr, 41.6/47.2 l/sec
• Airflow 31Pa @ 120 m3/hr, 33.3 l/sec
• Axial high efficiency impeller
• Long life ball-bearing motor with 40,000 hours life
• Wall/ceiling mounting
• Sound pressure 32/36 dB(A) @ 3m
• Power 10/13 watts
• Low SFP (Specific fan power) 0.24 w/l/s
• Voltage - 230/1/50-60Hz
• Rating IP45
• Max. ambient temperature 40 degree
