ESP Aperta Single Internal Door Proximity Keypad Kit with Flush Exit Button | EZT3K

Complete Single Door Access Control Kit with Proximity Reader, Keypad, Magnetic Lock & Exit Button

The ESP Aperta EZT3K is a complete single door access control kit, providing everything required to secure an internal door with PIN code or proximity tag access. Ideal for offices, schools, warehouses, residential buildings and commercial premises, this all-in-one solution combines a robust aluminium keypad, electromagnetic lock, emergency break glass, exit button and power supply for a professional access control installation.

The weather-resistant IP65-rated keypad supports up to 1,000 users via PIN codes or proximity fobs and features illuminated keys, tamper protection and dual relay outputs. Supplied with 10 proximity tags as standard, the EZT3K offers secure and convenient access management straight out of the box.

Available now from Alert Electrical your trusted supplier of professional security and access control solutions.

Features

• Complete Single Door Access Control Kit
• Proximity Reader & Backlit Keypad
• Suitable for Internal Doors
• Includes 250kg Electromagnetic Lock
• Flush Stainless Steel Exit Button Included
• Internal Emergency Break Glass Included
• Power Supply with Battery Backup Facility
• Supplied with 10 Proximity Tags
• Supports Up to 1,000 Users
• IP65 Rated Keypad
• Aluminium Alloy Keypad
• Tamper Protection
• Dual Relay Outputs
• 3 Year Manufacturer Warranty

Complete Access Control Solution

The EZT3K includes everything required for a professional single-door installation:

• EZTAG3 Proximity & Keypad Reader
• 250kg Magnetic Lock
• Flush Exit Button
• Internal Emergency Break Glass
• Power Supply Unit with Battery Backup Capability
• 10 Proximity Tags

Perfect for quick and straightforward installations.

Secure PIN & Proximity Access

The integrated keypad allows access using either:

• PIN Code
• Proximity Tag

Supporting:

• Up to 1,000 users
• PIN lengths from 2–6 digits
• Adjustable lock release time
• Latched and unlatched operation

Ideal for controlling access to staff-only or secure areas.

Durable Aluminium Keypad

Manufactured from aluminium alloy, the keypad features:

• Backlit blue keys
• Red, green and amber LED status indicators
• Tamper protection
• IP65 weather resistance

Providing dependable performance in demanding environments.

Emergency Exit Protection

The kit includes:

• Flush stainless steel push-to-exit button

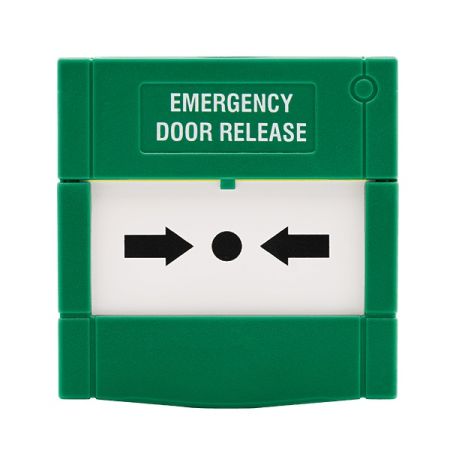

• Green emergency break glass unit

Helping maintain compliance with access control and emergency egress requirements.

• Brand: ESP
• Product Range: Aperta
• Product Code: EZT3K
• Product Type: Single Door Access Control Kit
• Installation: Internal Door
• Access Methods: PIN Code & Proximity Tag
• Keypad Material: Aluminium Alloy
• Keypad Finish: Silver
• Keypad IP Rating: IP65
• Mounting: Surface Mounted Keypad
• Maximum Users: 1,000
• PIN Length: 2–6 Digits
• Operating Voltage: 12–24V DC
• Operating Current: 110mA
• Relay Type: Normally Open & Normally Closed Volt-Free
• Maximum Relay Load: 30V @ 4A
• Lock Release Time: 1–99 Seconds
• Lock Included: 250kg Electromagnetic Lock
• Exit Button Included: Yes
• Emergency Break Glass Included: Yes
• Power Supply Included: Yes (Battery Backup Compatible)
• Proximity Tags Included: 10
• Keypad Dimensions: 150 × 44 × 24mm
• Power Supply Dimensions: 129 × 73 × 50mm
• Exit Button Dimensions: 86 × 86 × 22mm
• Emergency Break Glass Dimensions: 87.5 × 87.5 × 32mm
• Warranty: 3 Years

Ideal Applications

• Offices
• Schools
• Warehouses
• Commercial Buildings
• Staff Rooms
• Apartment Communal Doors
• Internal Security Doors
• Residential Developments
• Storage Areas
• Industrial Premises

Why Buy the ESP EZT3K?

The ESP Aperta EZT3K provides a complete, professional access control solution in one convenient kit. With a durable IP65-rated keypad, magnetic lock, emergency exit devices and support for up to 1,000 users, it's ideal for securing internal doors in commercial and residential environments while keeping installation quick and straightforward.
