GJD Dygizone Multifunction 4 Zone Controller Satin Silver & GJD040 Enunciator GJD910C
SKU: GJD910C
The DygiZone controller provides intelligent security lighting control which enhances security and saves energy.
GJD Dygizone Multifunction 4 Zone Controller Satin Silver & GJD040 Enunciator GJD910C
In an effort to increase security, many houses and premises are lit up like a Christmas trees at night. Instead of detering intruders, some of these security lighting systems just light their way, whilst at the same time illuminating the sky and wasting energy. The new advanced, feature rich DygiZone Controller provides intelligent security lighting control which enhances security, saves energy and minimises light pollution.
Features
- Precise 24 hour control and monitoring of 4 zones of security lighting via a user-friendly control panel and modern LCD display.
- Programmable functions that accurately control the activation, timing and duration of the lighting to minimise energy consumption and light pollution.
- Any one of 5 mode settings can be programmed for each zone.
- When the external GJD sensors are activated, the DygiZone indicates which Zone has been activated by either an audible beep or a 10 second pre-recordable voice message - and the Zone indicator is illuminated on the control panel.
- 2 programmable timers for each zone allows the lighting to be automatically switched on & off at pre-set periods for a pre-set time - ideal for when a building or premises are unoccupied.
- A system overide can be made from up to 3 locations at any time.
- The system can be expanded to enable up to a 30,000 Watts of lighting to be controlled and switched as required.
Dimensions
134 ( W ) x 87 ( H ) x 30 ( D ) mm
Specification
Supply | 12 VDC @ 20 mA standby. 100 mA triggered with message playback. |
Display | Back lit blue LCD display showing real time clock, detector activation and zone status. |
Audible | Internal warning tone. Individual tones for each zone or selectable 10 second voice recordable message for each zone. |
Control | Four individual zone buttons for selecting zone status and programming options. |
System configuration | Normally 1 Master and 1 Slave DygiZone. One additional Slave can be added if required. Requires GJD Expansion Units. |
Time control | Two individual on/off timers per zone. |
Mounting | Indoor use only. Mount in a clean dry location. Can be mounted on a standard single or double flush backbox. |
Temperature | -10 to +55 degrees Centigrade. |
Dimensions | 134 (W) x 87 (H) x 30 (D) mm |
Weight | 190g NET, 260g, GROSS |
Loading...
Related Products

Forum Zinc Mizar 20w LED Up & Down Wall Light 4000K White| ZN-34019-WHT
SKU: ZN-34019-WHT
£35.57
£29.64
Add to Cart

Eterna Lighting 1.7w LED Surface/Recessed Cabinet Downlight | CLEDCIR
SKU: CLEDCIR
£10.24
£8.53
Add to Cart

Spa Chai Bathroom LED Picture/Mirror Light Satin Brass | SPA-30993-SBRS
SKU: SPA-30993-SBRS
£44.12
£36.77
Add to Cart

Forum Zinc Leto ZN-29180-SST IP65 Garden Spike Spotlight Stainless Steel
SKU: ZN-29180-SST
£14.36
£11.97
Add to Cart

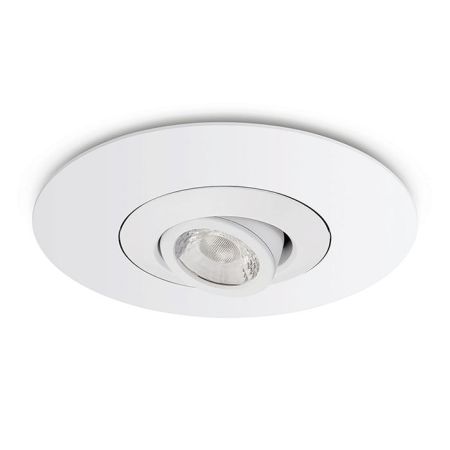

JCC V50 JC1004/WH Tilt Converter Plate White | For use with V50 Tilt Fire-rated LED downlight
SKU: JC1004/WH
£14.28
£11.90
Add to Cart

Collingwood CCT Outdoor LED Floodlight with PIR Sensor 50W IP65 White | FL05WPCS
SKU: FL05WPCS
£49.32
£41.10
Add to Cart

Eterna CHARA CCT 14W Circular LED Emergency & Microwave Sensor Ceiling/Wall Light | KCIRMW3
SKU: KCIRMW3
£34.02
£28.35
Add to Cart

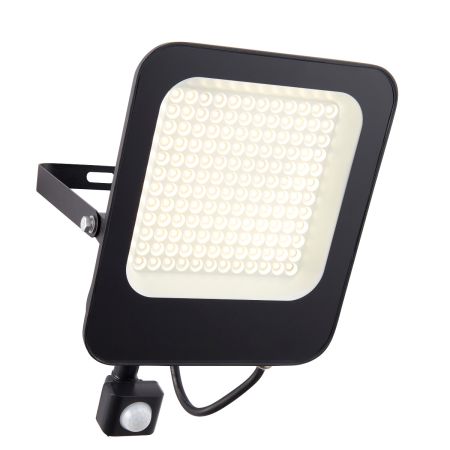

Saxby Guard 100W LED 4000K IP65 PIR Overide Floodlight Black | 108601
