Takex 100m External / 200m Internal Single Channel Quad Beam Detector PB-100F
SKU: PB-100F
The Takex 100m External / 200m Internal Single Channel Quad Beam Detector is the professional choice in outdoor protection.
Takex 100m External / 200m Internal Single Channel Quad Beam Detector PB-100F
The Takex 100m External / 200m Internal Single Channel Quad Beam Detector is the professional choice in outdoor protection. The Takex Quad beam detectors synchronise 16 beam paths for maximum stability in severe weather conditions, perfect for long range perimeter protection
For distances up to 100m (330ft) outdoor / 200m (660ft) indoor.
Features
- Synchronised Quad Beams for maximum stability in severe weather conditions
- Double Modulated beam for unsurpassed immunity to direct and reflected sunlight, vehicle headlights and other light sources.
- Built-in view finder and monitor jack output for easy beam alignment
- 180 degree rotating optics for increased installation flexibility
- Automatic Gain Control circuit
Specification
Product type | Photoelectric Beam Sensor |
Detection system | Simultaneous breaking of 4 beams |
Infrared beam | LED pulsed beam, Double modulation |
Protection distance | Outdoor 100m (330ft) or less Indoor 200m (660ft) or less |
Max. beam range | Outdoor 1000m (3300ft) or less Indoor 1000m (3300ft) or less |
Response time | 50msec. |
Supply voltage | 12V to 30VDC (Non-polarity) |
Current consumption | 75mA or less |
Alarm output | Dry contact relay output form C Contact action : Interruption time + delay time Contact capacity : 30V AC/DC, 0.5A or less |
Tamper output | Dry contact relay 1b (N/C) Action : Activated when cover is detached Contact capacity : 30V AC/DC, 0.5A or less |
Alarm LED | Red LED (Receiver) ON : when an alarm is initiated. |
Attenuation LED | Red LED (Receiver) ON : when beam is attenuated. |
Functions | Sound check : Audible check of beam level Monitor jack output Frost proof cover |
Ambient temperature range | -25°C to +55°C (-13°F to +131°F) |
Mounting positions | Outdoor (Perimeter protection) |
Wiring | Terminals |
Weight | Transmitter : 1.3Kg (45.5oz) Receiver : 1.3Kg (45.5oz) |
Appearance | PC resin (wine red) |
Loading...
Related Products

Texecom Ricochet 8XP-W Ricochet Wireless Expander GCD-0001
SKU: GCD-0001
£77.65
£64.71
Add to Cart

Pyronix Enforcer Wireless 12m Digital Quad PIR Detector KX12DQ-WE
SKU: KX12DQ-WE
£53.92
£44.93
Add to Cart

Texecom Odyssey X-BE Grade 2 Sounder with Integral Backlight | WDC-0001
SKU: WDC-0001
£32.90
£27.42
Add to Cart

Scantronic Personal Attack Belt/Pendant Transmitter | 710REUR-00
SKU: 710REUR-00
£84.00
£70.00
Add to Cart

ESP 10m Dual Function Camera Cable c/w BNC & Phono Connector | CAB-10
SKU: CAB10
£6.50
£5.42
Add to Cart

ESP Aperta Combined Power & Bus Separator Unit for Singleway System | APPOWSW
SKU: APPOWSWDR
£39.79
£33.16
Add to Cart

Eufy T81703W1 SoloCam S340 Wireless Outdoor Security Camera with Dual Lens and Solar Panel
SKU: T81703W1
£157.31
£131.09
Add to Cart

ESP Aperta Push to Exit Mushroom Release Button IP55 | EVEXITMIP55
SKU: EVEXITMIP55
£37.24
£31.03
Add to Cart

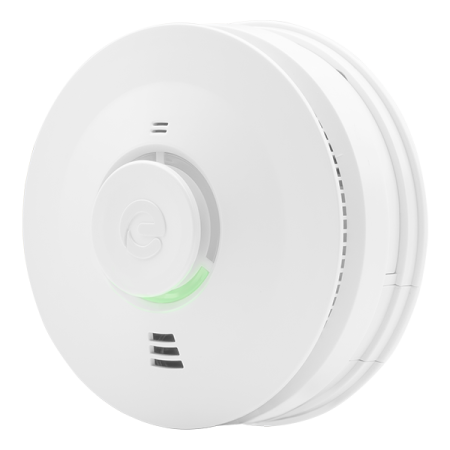

ESP Espire Mains Powered Smoke & Heat Multi-Sensor Alarm 10 Year Lithium Back-Up Battery | ES1MULV
