Takex 20m External / 40m Internal Intelligent Twin Beam Detector PB-20TE
SKU: PB-20TE
The Takex 20m External / 40m Internal Intelligent Twin photoelectric beams are designed to meet the highest standards of quality and reliability for photoelectric beam intrusion detection.
Takex 20m External / 40m Internal Intelligent Twin Beam Detector PB-20TE
The Takex 20m External / 40m Internal Intelligent Twin photoelectric beams are designed to meet the highest standards of quality and reliability for photoelectric beam intrusion detection. Unique twin beams are synchronised to work together to reinforce range and stability in severe weather conditions.
For distances up to 20m (66ft) outdoor / 60m (135ft) indoor
Features
- Choose from 4-Channels (selectable) for use in "stacked" or "in-line" systems without crosstalk
- Synchronised Twin Beams for reliable detection
- Double Modulated Beam type ensures unsurpassed immunity to direct and reflected sunlight and vehicle headlights
- Multi-Meter Test Points to accurately monitor alignment voltage
- Frost Resistant Cover minimises nuisance alarms in harsh weather
- Automatic Gain Control for maximum stability
Specification
Product type | Photoelectric Beam Sensor |
Detection system | Simultaneous breaking of 2 beams |
Infrared beam | LED pulsed beam, Double modulation |
Protection distance | Outdoor 20m (66ft) or less Indoor 40m (135ft) or less |
Max. beam range | Outdoor 200m (660ft) or less Indoor 200m (660ft) or less |
Response time | 50msec. to 700msec. (Variable at pot) |
Supply voltage | 12V to 30VDC (Non-polarity) |
Current consumption | 55mA or less |
Alarm output | Dry contact relay output form C Contact action : Interruption time + delay time Contact capacity : 30V AC/DC, 0.5A or less |
Tamper output | Dry contact relay 1b (N/C) Action : Activated when cover is detached Contact capacity : 30V AC/DC, 0.5A or less |
Alarm LED | Red LED (Receiver) ON : when an alarm is initiated. |
Attenuation LED | Red LED (Receiver) ON : when beam is attenuated. |
Functions | Beam frequency changeover (4ch.) Monitor jack output AGC circuit Frost proof cover |
Ambient temperature range | -25°C to +60°C (-13°F to +140°F) |
Mounting positions | Indoor / Outdoor |
Wiring | Terminals |
Weight | Transmitter : 380g (13.3oz) Receiver : 400g (14oz) |
Appearance | PC resin (wine red) |
Loading...
Related Products

Scantronic Plug-On WiFi Communicator for I-On Panels | COM-DATA-WIFI
SKU: COM-DATA-WIFI
£43.51
£36.26
Add to Cart

Texecom Premier Odyssey 5 Compact Dummy External Sounder | FCF-0009
SKU: FCF-0009
£12.32
£10.27
Add to Cart

Titus 31.55-Inch Full HD 60Hz HDMI Monitor | LED-HDMI3206-TD
SKU: LED-HDMI3206-TD
£174.00
£145.00
Add to Cart

AlarmSense Manual Call Point Transparent Hinged Cover | 44251-189APO
SKU: F/CHBG/AS/COVER
£2.46
£2.05
Add to Cart

Pyronix Deltabell E External Live Bellbox with Alert Cover | DELTABELLEALERT
SKU: DELTABELLEALERT
£39.46
£32.88
Add to Cart

Scantronic Radio Pet Tolerant Dual Tech PIR DET-RDTPT-G2
SKU: DET-RDTPT-G2
£58.80
£49.00
Add to Cart

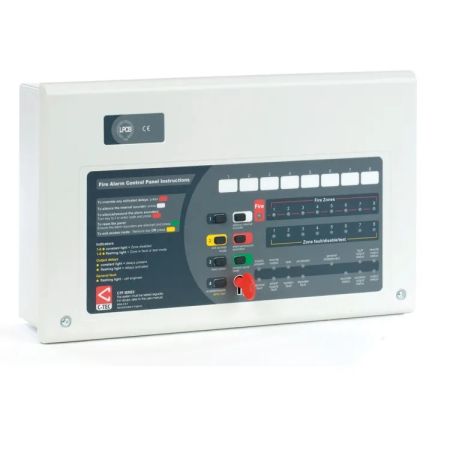

C-Tec CFP Standard 8 Zone Conventional Fire Alarm Panel | CFP708-4
